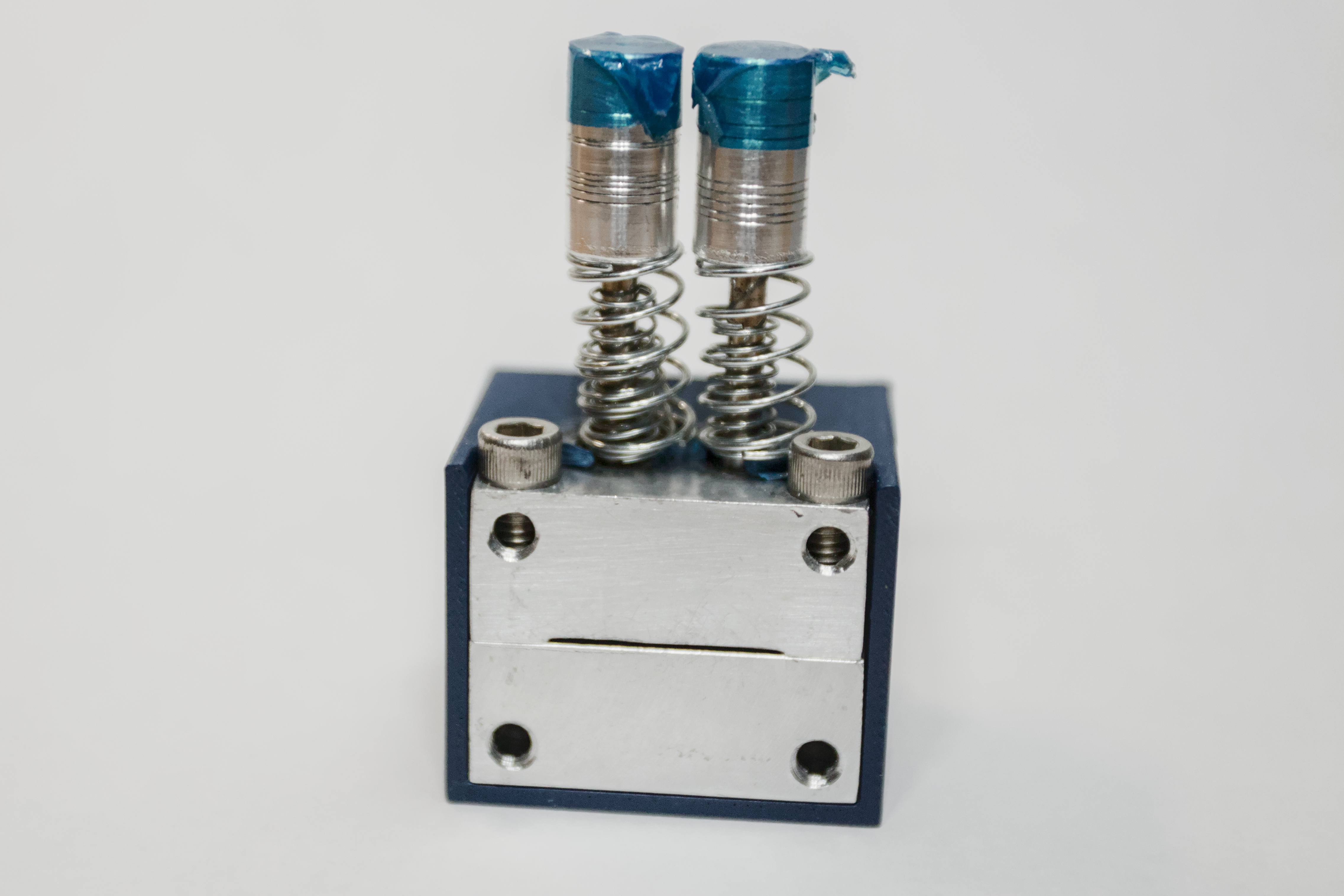

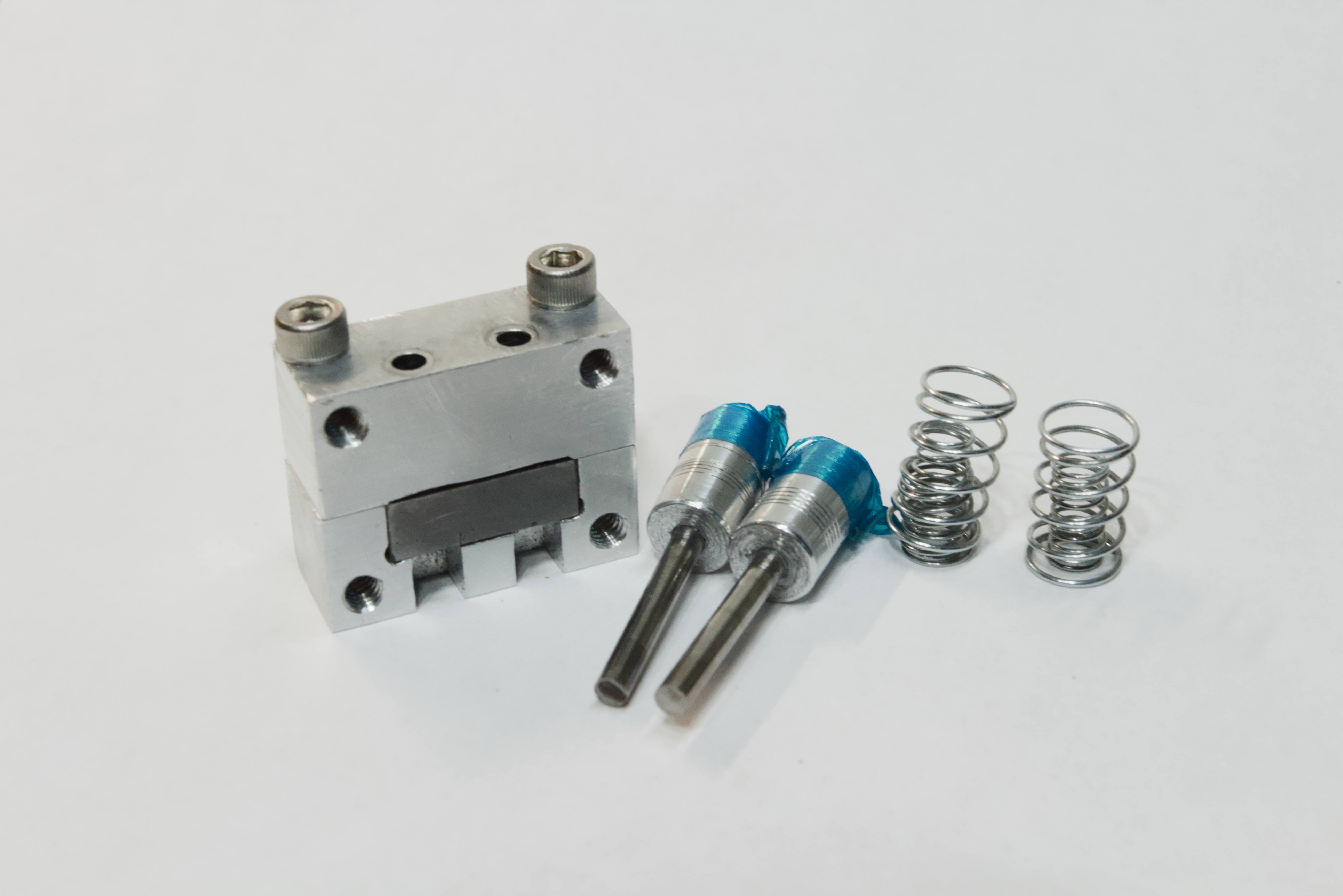

Punch and Die

- Designed to punch precise, repeatable mounting holes in pouch cell battery tabs (nickel-plated copper)

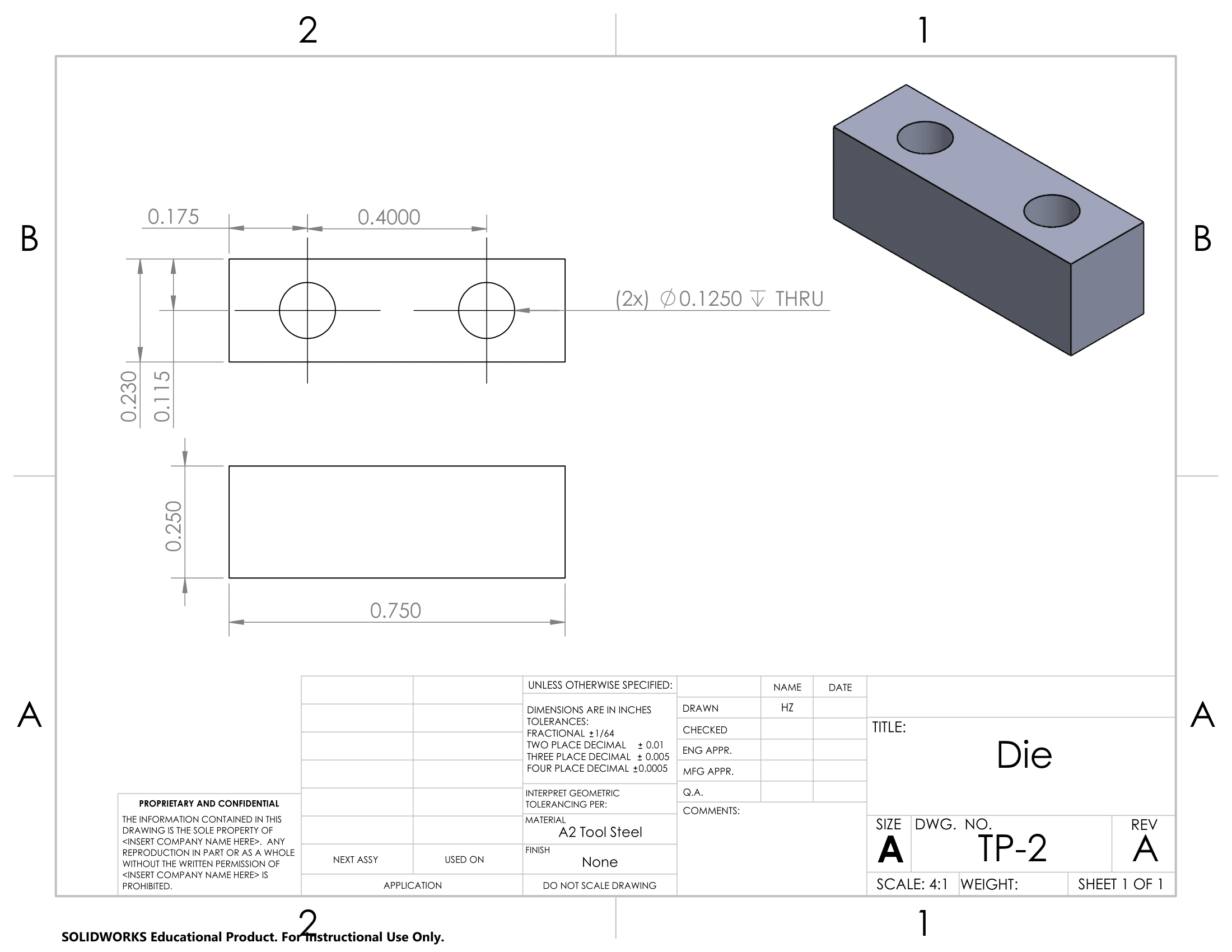

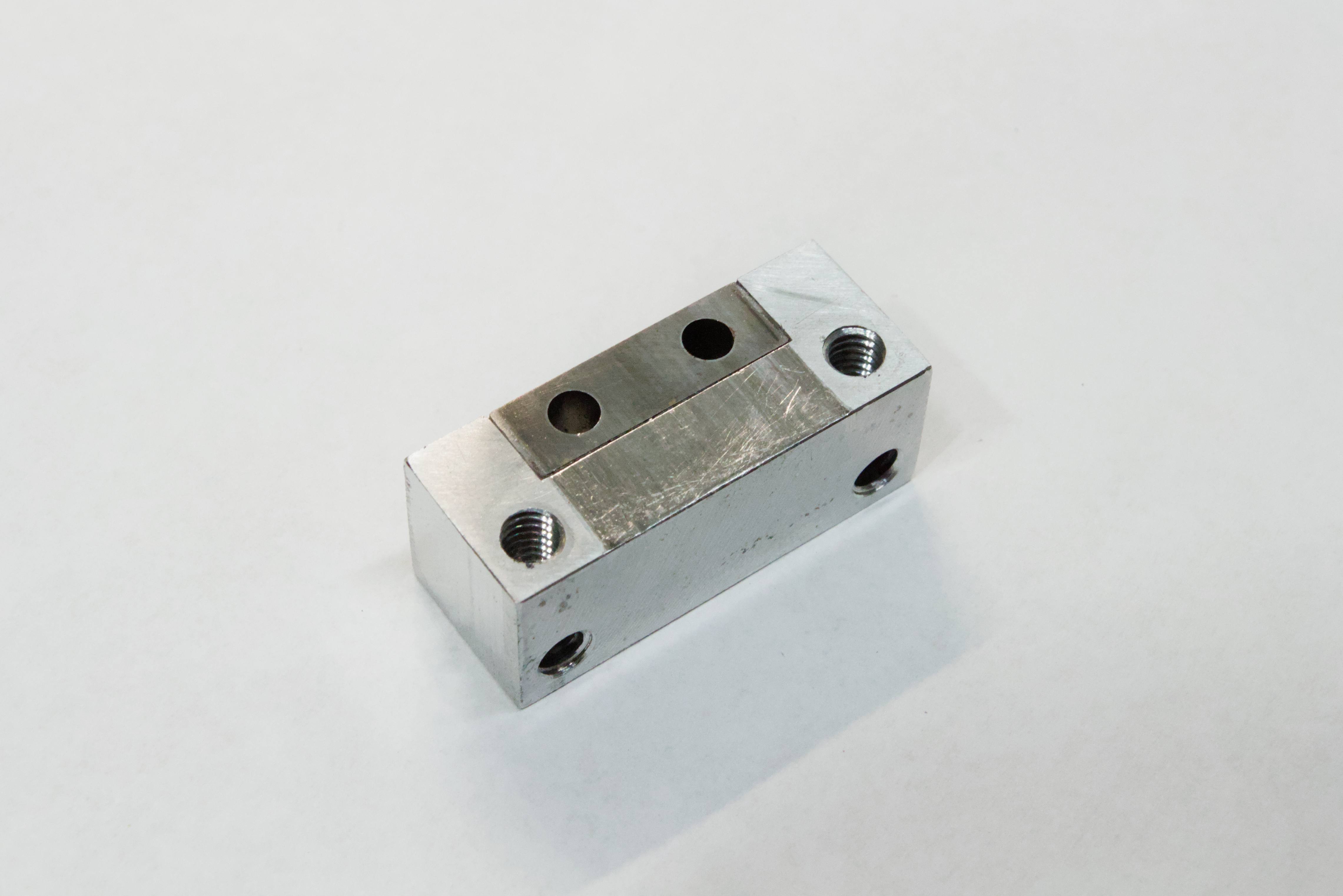

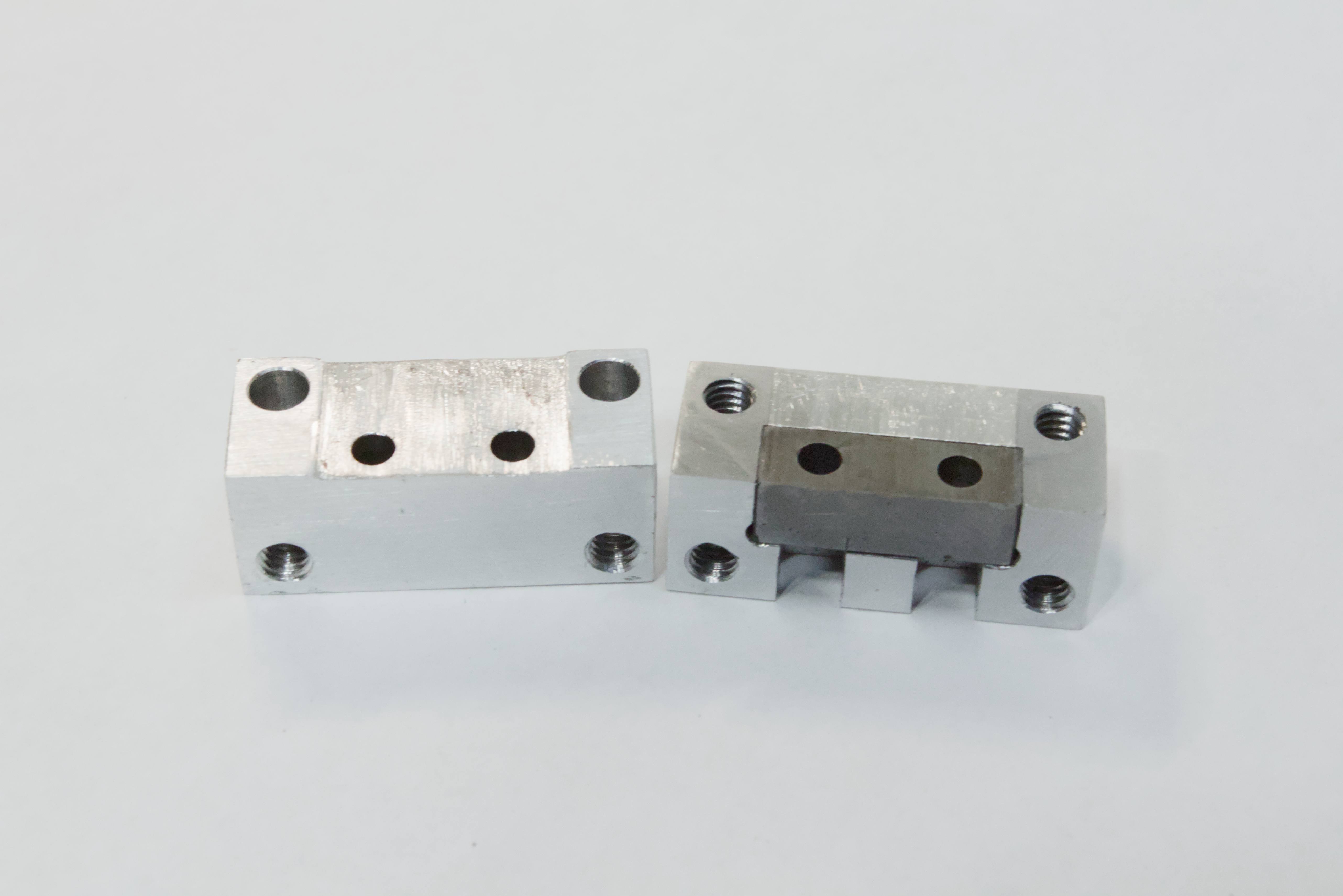

- Die made from A2 tool steel and hardened to 50HRC

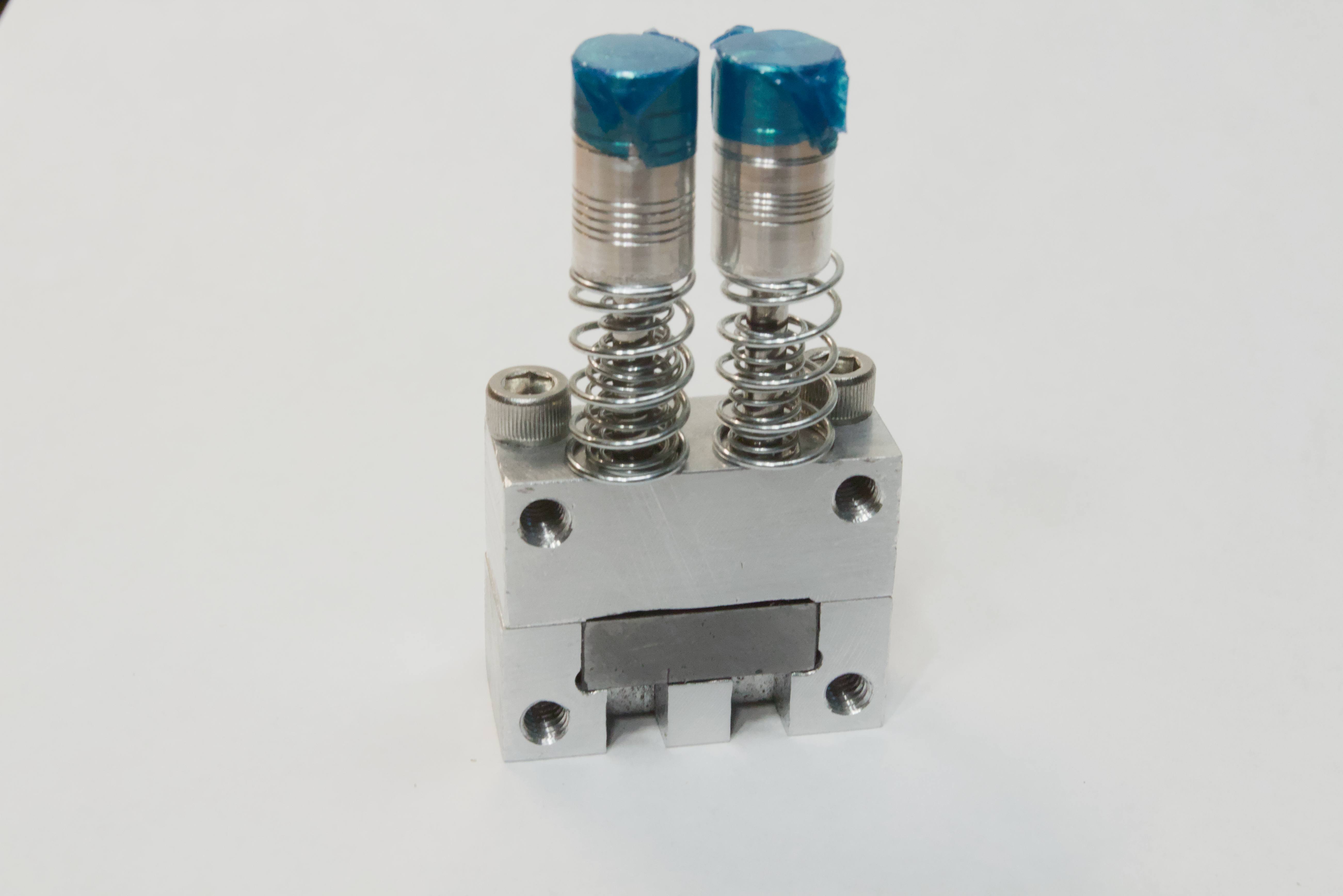

- Punch made from HSS precision ground steel pins

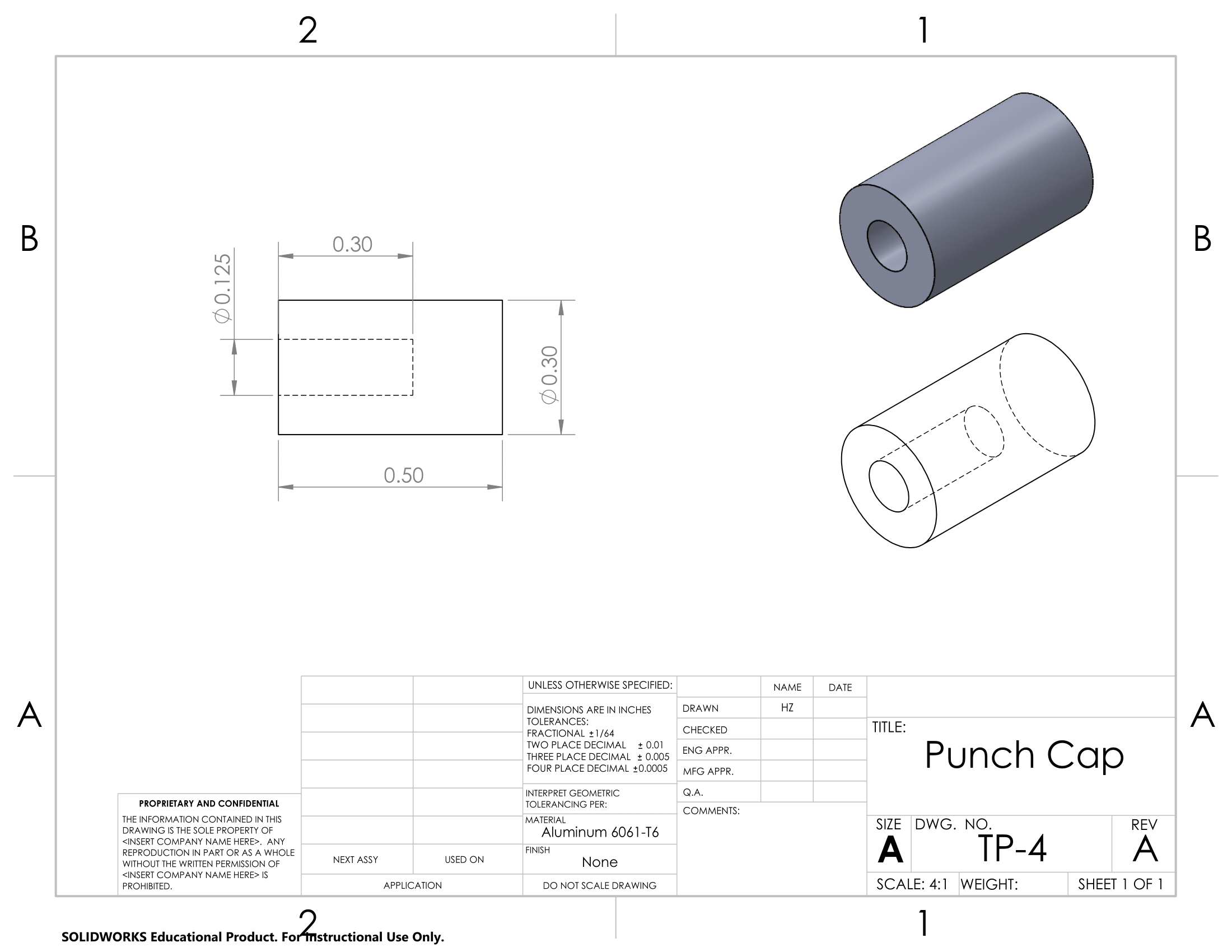

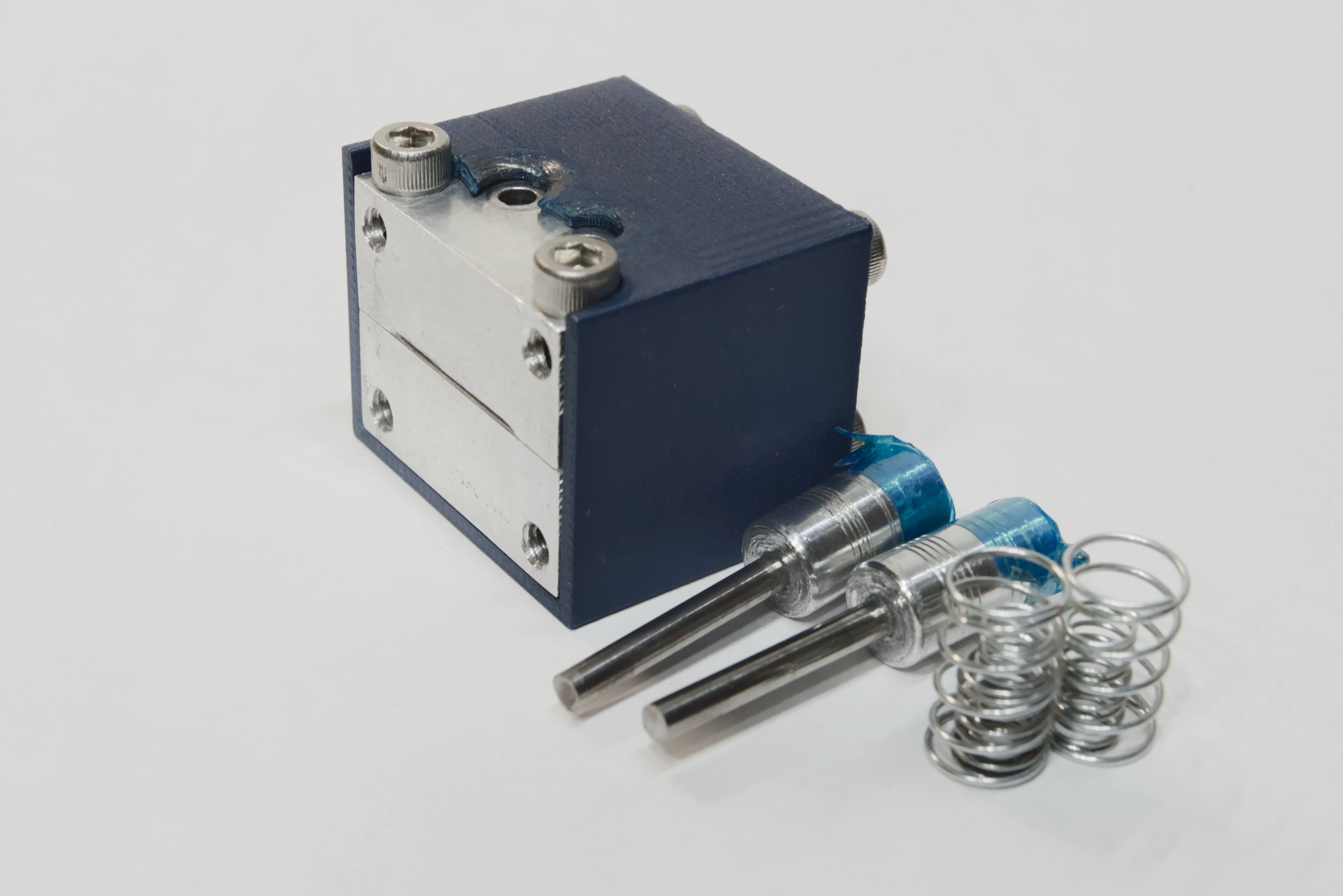

- 3D-printed cover + kapton tape for electrical insulation and safety
